Robotic Book Scanners

Explore our range of robotic book scanners which offer both robotic and manual scanning options. Ideal for diverse types of digitisation projects.

Robotic Book Scanner ROBO SCAN V2

The ROBO SCAN V2 is a robotic book scanner that elevates versatility to new heights in the market. Pairing the cutting-edge advantages of automation with the convenience of a manual book scanner, it's engineered with a keen focus on realistic digitisation projects. While the robotic part of the ROBO SCAN V2 can do most of the job, it is also equally proficient at handling problematic books in manual mode. This ensures no task is beyond its scope.

  • Advantages:

    • Robotic scanning of books in v-shaped position (120 degrees) with and without glass plate
    • Manual scanning of books in v-shaped position (120 degrees) with and without glass plate
    • Manual scanning of books in fully opened position (180 degrees) with and without glass plate

  • Technical Data:

    • Scanning range 620 x 420mm (24.4 x 16.5 inches)
    • Resolution 600 ppi
    • 48-bit color depth
    • IP device with its individual IP address
    • Scanning of books in 120-degree position up to 150mm thickness
    • Scanning of books in 180-degree position up to 120mm thickness

ROBO SCAN 2

The ROBO SCAN 2 is an advanced A2+ robotic book scanner on the market that is designed to handle books of up to 35 cm in thickness. Its distinguishing feature is its high optical resolution for superior image quality. For those books that are particularly problematic, rare or fragile, there's the option to disable the robotic function, turning the ROBO SCAN 2 into a manual book scanner. This is truly one of a kind, as no other scanner in the market offers this combination of features.

  • Advantages:

    • Robotic and manual book scanning in one device
    • Scanning range way above A2
    • Very high optical resolution
    • Free of IR and UV radiation
    • Virtual 3D technology (V3D)
    • Bidirectional scanning
    • Motorised heavy-duty book cradle
    • Prime and consistent scanning results independent from ambient light

  • Technical Data:

    • Scanning range 635 x 508mm (25 x 20 inches)
    • Optical resolution of 600 ppi over the entire scanning range
    • 48-bit color depth
    • IP device with its individual IP address
    • Motorised 35 cm pull-out book cradle as a standard feature
ROBO SCAN 2

ROBO SCAN 1

The ROBO SCAN 1 stands unrivalled as the only robotic book scanner in the world that can accommodate books up to A1 size fully automatic. Its versatility extends to handling problematic, rare or fragile books with care. In such instances, the robotic function can be deactivated to turn the ROBO SCAN 1 into a manual book scanner. No other scanner on the market combines these amazing features.

  • Advantages:

    • Robotic and manual book scanning in one device
    • Scanning range above A1
    • Very high optical resolution
    • Free of IR and UV radiation
    • Virtual 3D technology (V3D)
    • Bidirectional scanning
    • Motorised heavy-duty book cradle
    • Prime and consistent scanning results independent from ambient light

  • Technical Data:

    • Scanning range 914 x 635mm (36 x 25 inches)
    • Optical resolution of 600 ppi over the entire scanning range
    • 48-bit color depth
    • IP device with its individual IP address
    • Motorised 35 cm pull-out book cradle as a standard feature
ROBO SCAN 1 new colour

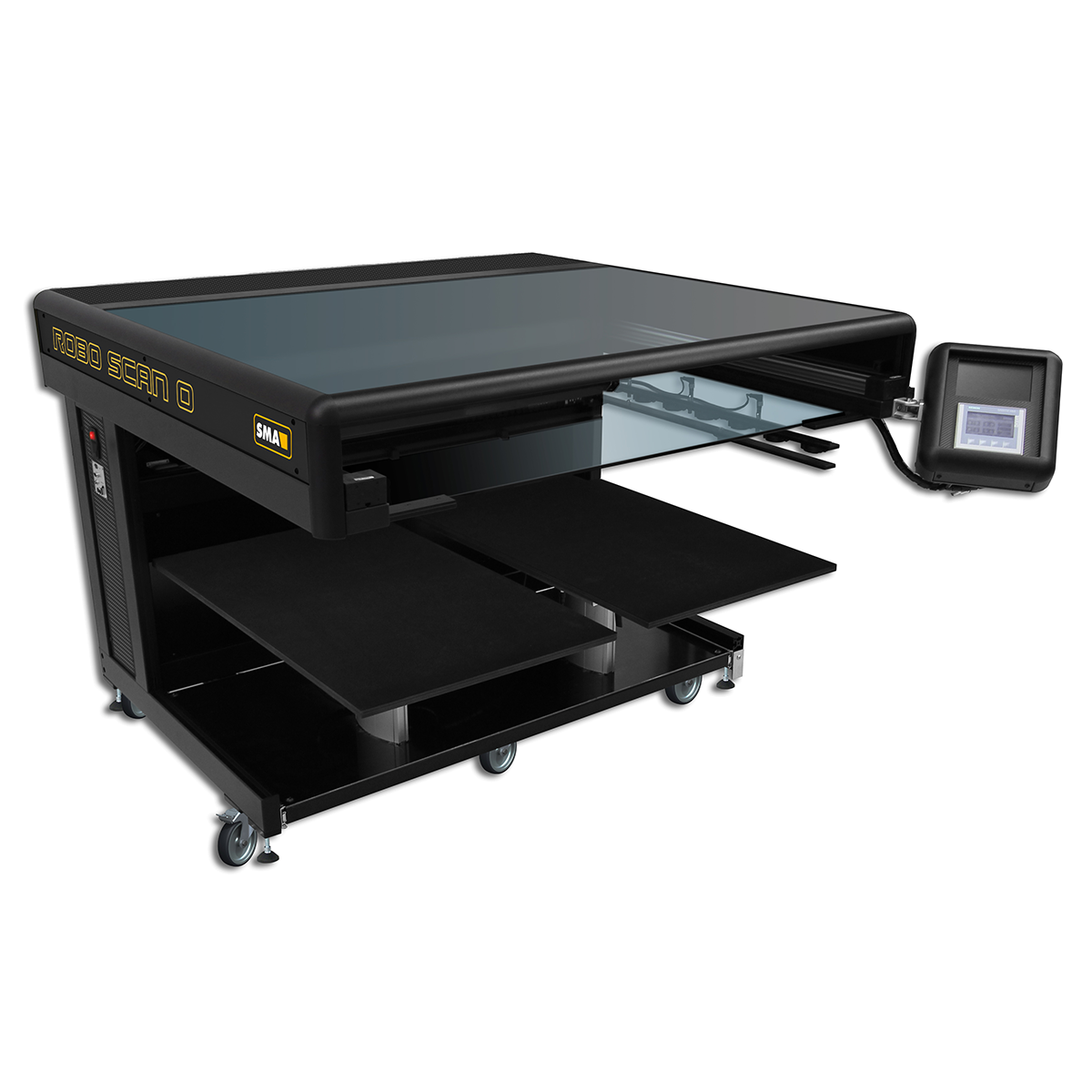

ROBO SCAN 0

The ROBO SCAN 0 is a truly one-of-a-kind scanner. It combines the capabilities of a manual A0 book scanner with the convenience of an A1 robotic book scanner in a singular device. Its versatility is unmatched with the robotic function offering flexibility for use. It effortlessly scans A0 maps and books manually, whilst also handling books up to A1 size robotically. There is no other product like this in the world!

  • Advantages:

    • Robotic and manual book scanning in one device
    • Scanning range above A0
    • Very high optical resolution
    • Free of IR and UV radiation
    • Virtual 3D technology (V3D)
    • Bidirectional scanning
    • Motorised heavy-duty book cradle
    • Prime and consistent scanning results independent from ambient light

  • Additional Description:

    The ROBO SCAN 0 is completely unique. It combines the capabilities of a manual A0 book scanners and the convenience of an A1 robotic book scanner in one. Since the robotic function can be disabled the ROBO SCAN 0 is extremely versatile. It can scan A0 maps and books manually and books up to A1 robotically! There is no product like this in the world!

  • Technical Data:

    • Scanning range 1219 x 965mm (48 x 38 inches)
    • Scans books up to A1 robotically
    • Optical resolution of 600 ppi over the entire scanning range
    • 48-bit color depth
    • IP device with its individual IP address
    • Motorised 35 cm pull-out book cradle as a standard feature
