Manual Book Scanners

• Scanning range above A0
• Very high optical resolution
• Extremely high scanning speed
• Free of IR and UV radiation
• Virtual 3D technology (V3D)
• Bidirectional scanning
• Motorised heavy-duty book cradle
• Prime and consistent scanning results independent from ambient light

The operation of the SCAN MASTER 0 4838 A0 book scanner is simple and straightforward. Simply place the book and hit the scan button. It’s that easy. The rest of the process is fully automatic, leaving the operator with nothing to do but turn the page and trigger the scan.

All SMA scanners come equipped with a special LED light illuminator that doesn’t emit any harmful ultraviolet or infrared radiation. This means harmless and consistent illumination. The illuminator, which is situated inside the scan head, seamlessly moves across the original documents, allowing all SMA book scanners to function independently from ambient light without irritating the operator’s eyes.

The SCAN MASTER 0 4838 A0 book scanner is equipped with V3D Technology. This technology enables the digitisation of textured surfaces such as wood, rubber, plastic, fabrics and carpet, along with light-reflecting items like coins, seals, and metallic prints. Gold or silver-coated originals can also be captured with exceptional quality. This extends its application beyond materials in the traditional library and archive world, which opens up new possibilities for digitisation in other sectors.

V3D, standing for VISUAL 3D, is a state-of-the-art scanning technology that produces results that look very similar to 3D. It utilises multiple lighting scenarios to capture the same area from different perspectives. These separate images are then consolidated into one by the software, which results in V3D images that perfectly reproduce the appearance of nearly any structured surface while significantly enhancing the depth of field. This unique approach takes SMA scanners' already exceptional image quality to a whole new level. If you want to perform regular 2D scanning, the V3D function can be easily turned off.

• Scanning range 914 x 1270mm (36 x 50 inches)
• Optical resolution of 600 ppi over the entire scanning range
• 48-bit color depth
• IP device with its individual IP address
• Motorised 35 cm pull-out book cradle as a standard feature

• Scanning range above A0
• Very high optical resolution
• Extremely high scanning speed
• Free of IR and UV radiation
• Virtual 3D technology (V3D)
• Bidirectional scanning
• Motorised heavy-duty book cradle
• Prime and consistent scanning results independent from ambient light

The operation of the SCAN MASTER 0 3650 A0 book scanner is simple and straightforward. All you have to do is place the book and hit the scan button. The rest of the process is completely automatic, which leaves the operator with nothing to do but turn the page and release the scan. It’s that simple.

Every SMA scanner comes equipped with a special LED light illuminator that doesn’t emit any ultraviolet or infrared radiation, which means harmless and consistent illumination is guaranteed. The illuminator, which is located inside the scan head, simply moves across the original document. As a result, all SMA book scanners can function independently from ambient light and do not cause irritation to the operator’s eyes.

The SCAN MASTER 0 3650 A0 book scanner is equipped with V3D Technology. This technology makes it possible to digitise many different types of textured surfaces, such as wood, rubber, plastic, fabrics and carpet, along with light-reflecting items like coins, seals, and metallic prints. Gold or silver-coated originals can also be captured with high quality. This innovation extends its application beyond materials in the traditional library and archive world, opening up new possibilities for digitisation in other areas.

V3D, which stands for VISUAL 3D, is a cutting-edge scanning technology that produces results that look like 3D. It uses multiple lighting scenarios to capture the same area from different perspectives. These separate images are then combined into one by the software, resulting in V3D images that perfectly reproduce the appearance of nearly any structured surface. It also significantly enhances the depth of field. This one-of-a-kind approach takes SMA scanners' already exceptional image quality to a whole new level. Moreover, the V3D function can be easily turned off for those who wish to perform regular 2D scanning.

• Scanning range 914 x 1270mm (36 x 50 inches)
• Optical resolution of 600 ppi over the entire scanning range
• 48-bit color depth
• IP device with its individual IP address
• Motorised 35 cm pull-out book cradle as a standard feature

• Scanning range above A1
• Very high optical resolution
• Extremely high scanning speed
• Free of IR and UV radiation
• Virtual 3D technology (V3D)
• Bidirectional scanning
• Motorised heavy-duty book cradle
• Prime and consistent scanning results independent from ambient light

The operation of the SCAN MASTER 1 A1 book scanner is simple and straightforward - simply place the book and hit the scan button. The rest of the process is fully automatic, leaving the operator with nothing to do but turn the page and trigger the scan.

All SMA scanners come equipped with a special LED light illuminator that doesn’t emit any ultraviolet or infrared radiation, meaning harmless and consistent illumination is essentially a guarantee. The illuminator, which is located inside the scan head, moves across the original document. This allows all SMA book scanners to function independently from ambient light without irritating the operator’s eyes.

The SCAN MASTER 1 A1 book scanner is equipped with V3D Technology. This innovative feature enables the digitisation of textured surfaces such as wood, rubber, plastic, fabrics and carpet, along with light-reflecting items like coins, seals, and metallic prints. Gold or silver-coated originals can also be captured with remarkable quality. This cutting-edge technology extends its application beyond materials in the traditional library and archive world, opening up new possibilities for digitisation in other areas.

V3D, which stands for VISUAL 3D, is a state-of-the-art scanning technology that produces results that look like 3D. It uses multiple lighting scenarios to capture the same area from different perspectives. These separate images are then combined into one by the software, resulting in V3D images that perfectly reproduce the appearance of nearly any structured surface. It also significantly enhances the depth of field. This unique approach takes SMA scanners' already exceptional image quality to a whole new level. If you wish to perform regular 2D scanning, the V3D function can be easily turned off.

• Scanning range 914 x 635mm (36 x 25 inches)
• Optical resolution of 600 ppi over the entire scanning range
• 48-bit color depth
• IP device with its individual IP address
• Motorised 35 cm pull-out book cradle as a standard feature
• Upgradable to robotic scanning

• Scanning range way above A2
• Very high optical resolution
• Extremely high scanning speed
• Free of IR and UV radiation
• Virtual 3D technology (V3D)
• Bidirectional scanning
• Motorised heavy-duty book cradle
• Prime and consistent scanning results independent from ambient light

The operation of the SMA SCAN MASTER 2 A2 book scanner is user-friendly and straightforward - simply place the book and hit the scan button. The system handles the rest of the process, leaving the operator to just turn the page and trigger the scan.

Every SMA scanner comes equipped with a special LED light illuminator that does not produce any ultraviolet or infrared radiation. This means safe and consistent illumination is essentially guaranteed. The illuminator, which is positioned within the scanning head, moves across the original document. This allows all SMA book scanners to function independently from ambient light without causing any discomfort to the operator’s eyes.

The SCAN MASTER A2 book scanner is equipped with the innovative V3D Technology. It enables the digitisation of textured surfaces such as wood, rubber, plastic, fabrics and carpet, along with light-reflecting items like coins, seals, and metallic prints. Gold or silver-coated originals can be captured with remarkable quality. This state-of-the-art technology extends its application beyond materials in the traditional library and archive world, opening up new possibilities.

V3D, which stands for VISUAL 3D, is a revolutionary scanning technology that produces results that look like 3D. It utilises multiple lighting scenarios to capture the same area from different perspectives. These separate images are then melded into one by the software, resulting in V3D images that perfectly reproduce the look of nearly any structured surface. Moreover, it significantly enhances the depth of field. This unique approach takes the already superior image quality of SMA scanners to a whole new level. The V3D function can be easily turned off for regular 2D scanning.

• Scanning range 635 x 508mm (25 x 20 inches)
• Optical resolution of 600 ppi over the entire scanning range
• 48-bit color depth
• IP device with its individual IP address
• Motorised 35 cm pull-out book cradle as a standard feature
• Upgradable to robotic scanning

• Scanning range A3+
• Very high optical resolution
• High productivity
• Free of IR and UV radiation
• Compact design

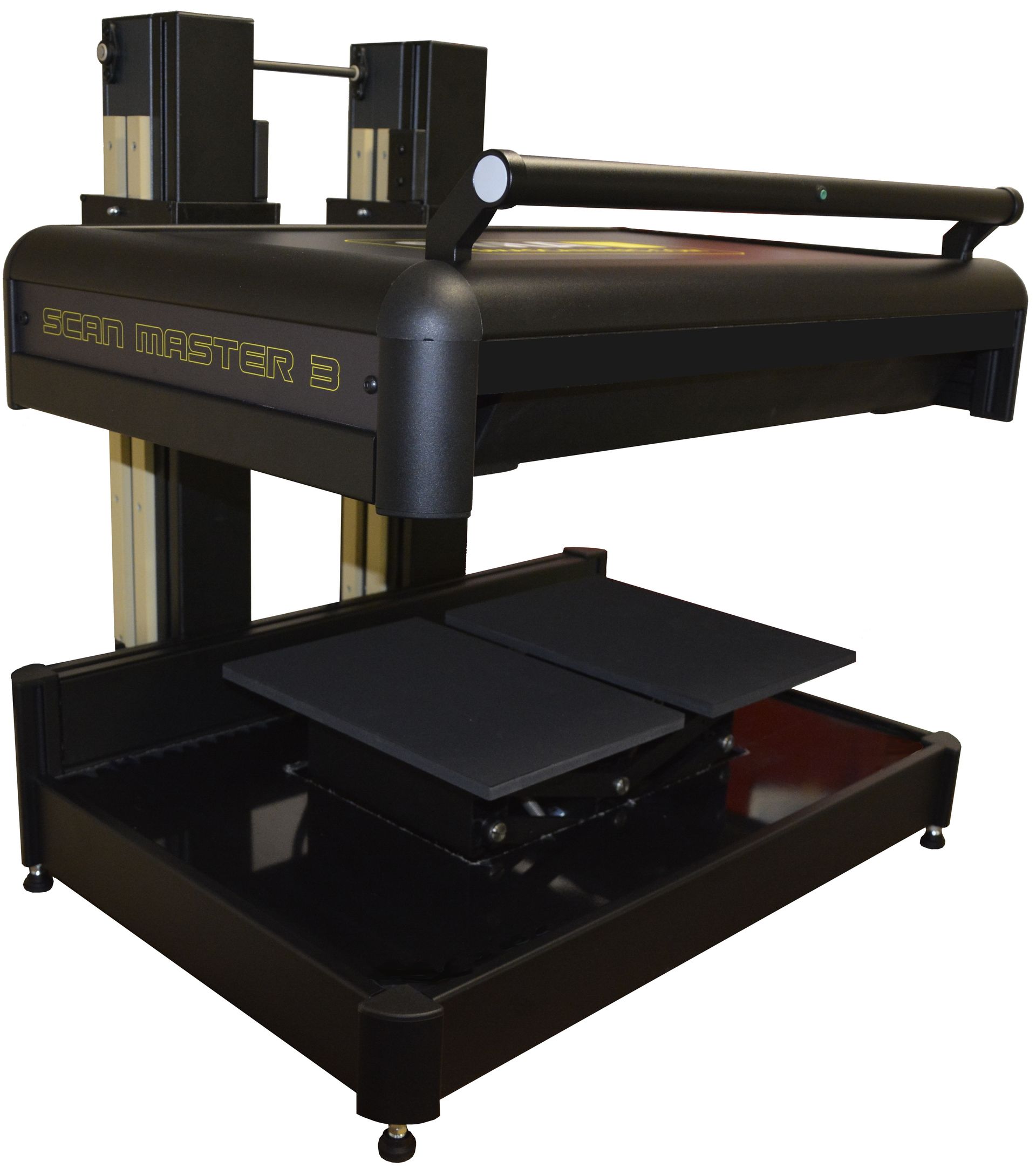

Operating the SCAN MASTER 3 is as easy and straightforward as can be. Simply open the lid, place the book, and then close the lid to automatically initiate the scanning process. The only thing left for the operator is to replicate this procedure - open the lid, turn the page, and close the lid.

Located within the scan head, the illuminator of the SCAN MASTER 3 moves effortlessly across the original. This distinct feature allows the SCAN MASTER 3 to function independently of external lighting conditions, which eliminates any discomfort to the operator's eyes. This characteristic is a distinguishing feature of all SMA scanners, setting them apart in the market.

The SCAN MASTER 3 also features a convenient USB interface.

SMA distinguishes itself as the sole worldwide provider offering a comprehensive selection of large format flatbed scanners, ranging from A3 to triple A0+, and a range of both manual and robotic book scanners. Each of our scanners delivers the absolute highest optical resolution. This is especially true for larger sizes such as A0 and above.

• Scanning range 432 x 300mm (17 x 11.8 inches)
• Optical resolution of 600 ppi over the entire scanning range
• 48-bit color depth
• TWAIN and ISIS Driver available
• USB Interface

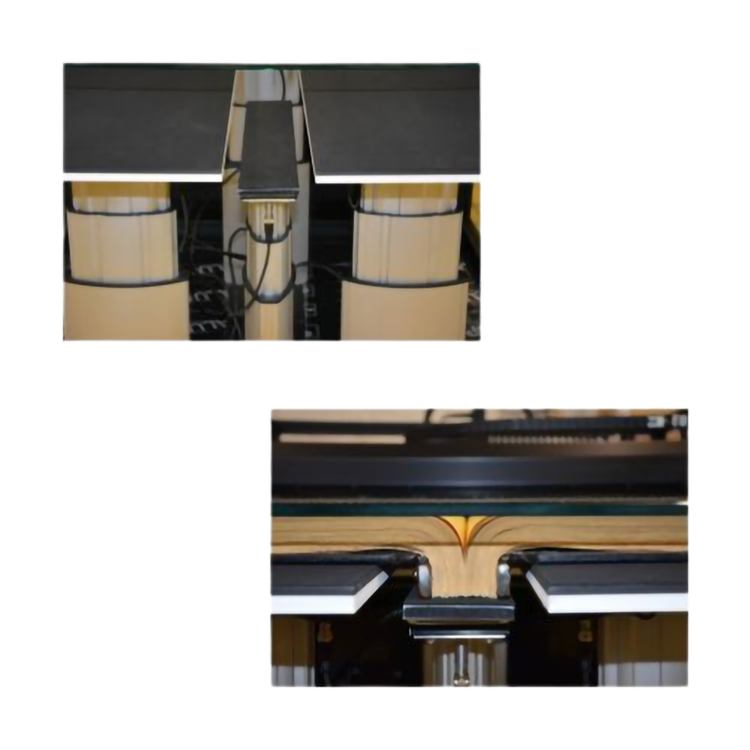

• Supports the book spine
• Extremely durable
• Adjustable pressure via touch panel
• Can be enabled/disabled in seconds
• Available for all SMA floor models

• Pressure control via special sensor
• 35 cm motorised lifting column
• 50 cm range optional available
• Up to 35 kg weight limit, Higher weight limits available
• Does not decrease productivity
